Building Smarter Bots with Azure's AI Toolkit

Introduction

Imagine a customer reaching out to a company’s support team, looking for quick answers. In the past, they might have waited on hold or searched through FAQs. But today, AI-powered chatbots provide instant responses, guiding users through their questions effortlessly. Whether it’s troubleshooting an issue, retrieving enterprise data, or offering personalized recommendations, these chatbots have become an essential part of modern customer service.

But how do they work so efficiently? Simple bots can answer basic queries, but when conversations get complex, they need something more powerful. That’s where Retrieval-Augmented Generation (RAG) and advanced AI models like GPT-4o come in. Instead of relying solely on pre-programmed responses, RAG
allows a chatbot to search for relevant information in real time before crafting an answer. This means a healthcare bot can pull up the latest medical guidelines before explaining diabetes symptoms, or a financial assistant can reference current market data before offering investment advice.

Microsoft Azure provides a complete toolkit to build these smart chatbots. With Azure Bot Service, Cognitive Services, Prompt Flow, and Azure OpenAI, businesses can create AI-driven assistants that feel natural, understand context, and deliver accurate, real-time information.

This guide takes you step by step through the process of building an intelligent chatbot using Azure AI. From designing conversations to integrating advanced AI models, you’ll learn how to create a bot that not only answers questions but truly engages users—enhancing customer satisfaction and reducing workload on
human agents.

Now, let’s explore how you can bring your AI chatbot to life.

Step 1: Define the Purpose of Your Chatbot

A well-defined goal ensures that your chatbot delivers value. Consider these use cases:

• • Customer Support Bot (SaaS) – Answers frequent questions like “How do I reset my password?,”

    allowing support staff to focus on complex issues.

  • Financial Assistant Bot (Banking) – Provides quick responses to queries such as “What were my

    account fees last month?” or “Show my last five transactions.”

  • Order Tracking Bot (Logistics) – Instantly updates customers with “Where is my package?” or “When

    will my order arrive?”

By clearly defining its purpose, your chatbot can efficiently serve users and improve workflows.

Step 2: Set Up Your Azure Environment

Azure provides essential services for chatbot development:

1. Azure Bot Service – The core framework for creating, testing, and deploying chatbots across multiple

   platforms like websites and Microsoft Teams.

2. Azure Cognitive Services - Language Understanding (LUIS) – Helps the bot understand and interpret

   user queries accurately.

3. Azure QnA Maker – Builds a knowledge base to answer frequently asked questions.

4. Azure Data Services (SQL, Cosmos DB, Data Lake) – Securely stores enterprise data for real-time

   responses.

5. Azure OpenAI & AI Studio – Enhances chatbot intelligence with advanced AI models like GPT-4,

   enabling natural and dynamic interactions.

A well-configured Azure environment ensures the chatbot is secure, responsive, and scalable.

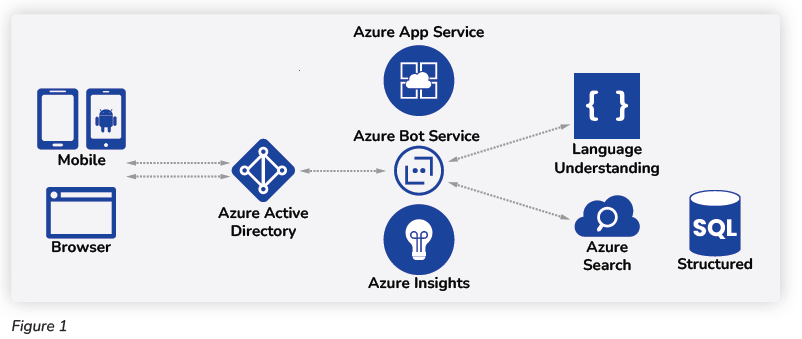

Step 3: Design a Secure and Scalable Chatbot Architecture

A structured architecture helps the bot function efficiently. The key components include:

1. User Interaction Layer – Manages communication across different platforms.

2. Bot Logic & Natural Language Understanding (NLU) – Processes queries using Prompt Flow to

   enable step-by-step guided conversations.

3. Data Access Layer – Retrieves information securely from Azure SQL, Cosmos DB, or external APIs.

4. Response Generation Layer – Constructs well-formed replies using AI models.

Step 4: Customize Your Bot’s Language Model

Using Azure OpenAI models like GPT-3.5 and GPT-4, you can fine-tune responses for better engagement.
Key settings include:

• • Max Tokens – Controls response length.

  • Temperature – Adjusts the level of randomness in responses (lower for factual answers, higher for

    creative ones).

  • Top_p and Top_k – Helps refine word selection for consistency.

  • System Message – Defines the chatbot’s tone (formal for finance, casual for retail).

Step 5: Test in Azure’s Chat Playground

Before deployment, use Azure’s Chat Playground to fine-tune the chatbot:

• • Adjust response parameters – Modify AI settings to optimize replies.

  • Simulate real conversations – Test how the bot handles multi-step queries.

  • Ensure accuracy – Verify that responses align with user expectations.

Step 6: Use Prompt Flow for Complex Conversations

Prompt Flow enables the chatbot to handle multi-step interactions naturally:

1. Modify Query with History – Retains previous user inputs for better context.

2. Lookup – Searches enterprise databases for relevant information.

3. Generate Prompt Context – Compiles all necessary details to form a complete response.

4. Prompt Variants – Creates multiple response options for clarity and tone.

5. Chat with Context – Delivers well-structured, user-friendly answers.

Step 7: Secure Data Access

Ensuring security is critical for enterprise chatbots. Implement:

• • Azure Active Directory (AAD) – Manages authentication and access control.

  • API Management – Restricts unauthorized data exposure.

  • Data Encryption – Protects sensitive information in transit and at rest.

Step 8: Connect Your Bot to Enterprise Data Sources

To provide real-time, data-driven responses, connect your chatbot to:

• • Azure SQL Database – Retrieves structured data securely.

  • Cosmos DB – Provides fast, scalable data access.

  • Data Lake & Blob Storage – Stores and processes large datasets for analytics-driven insights.

Step 9: Implement Semantic Search for Enhanced Client Support

Azure Semantic Search allows chatbots to understand queries better and retrieve relevant results:

• • Consulting Firms – Helps clients find case studies or reports.

  • Educational Institutions – Guides students through the application process.

  • E-commerce Platforms – Locates product details from large catalogs.

Step 10: Use QnA Maker for Common Queries

A well-structured FAQ database improves chatbot efficiency:

1. Create a Knowledge Base – Include frequently asked questions and answers.

2. Train the Bot – Ensure it understands different ways users might phrase questions.

3. Integrate with Azure Bot Service – Connect QnA Maker for instant responses.

Step 11: Deploy and Test in a Live Environment

Before going live, conduct:

• • Deployment Testing – Simulate real-world usage.

  • User Acceptance Testing (UAT) – Collect feedback from a test group.

  • Performance Monitoring – Use Azure Application Insights to track bot performance.

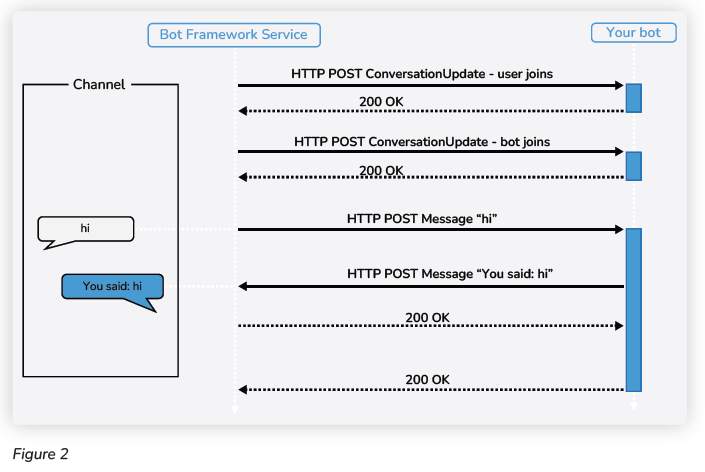

Bot's Life Cycle

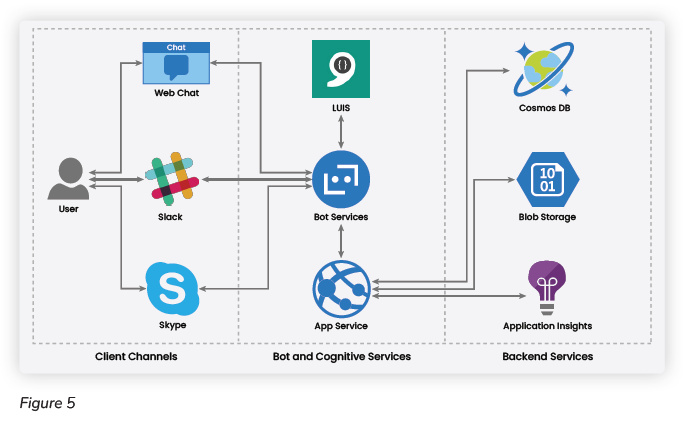

Architecture Diagram

Conclusion

With Azure AI tools, organizations can build powerful, scalable, and secure chatbots that improve user experience and operational efficiency. By integrating Azure Bot Service, OpenAI, Cognitive Services, and Prompt Flow, businesses can create chatbots that deliver real-time, intelligent, and context-aware conversations.
Next Steps: Start building your AI-powered chatbot today! Contact us for expert guidance on implementation and best practices.

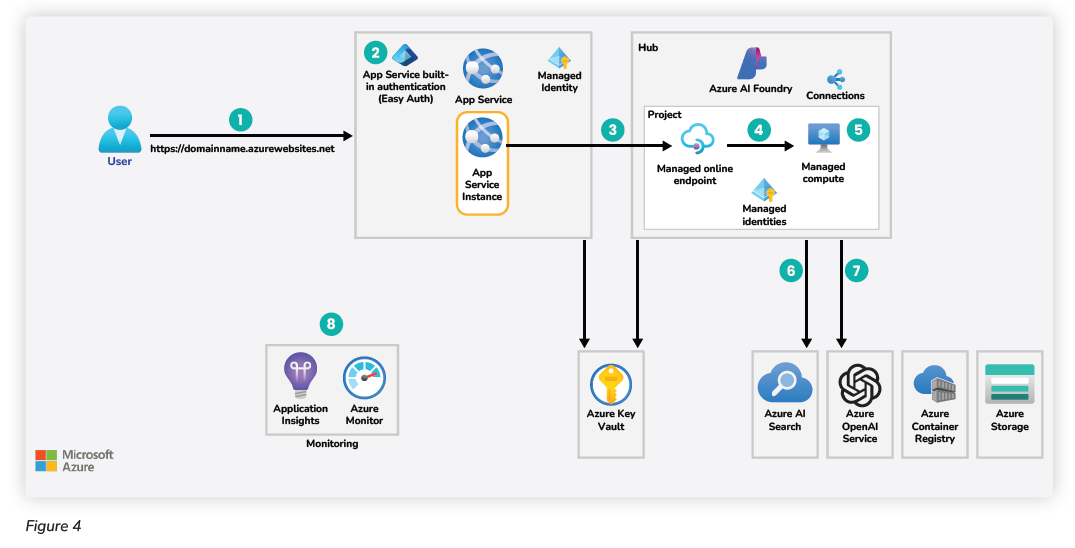

End to End Flow Diagram
